NX
- Size
- 45" W 46" L
- Weight
- 20 lbs
- Fits ROPS
- 30"–40" wide
N-Series Product Description
The N-Series Tractor Canopies are engineered for operators who demand dependable protection without sacrificing tractor versatility. Designed to fit a wide range of Zero-Turn mowers up to large Utility Tractors, the N-Series delivers expansive overhead coverage that shields operators from sun exposure, rain, and snow. Its refined profile balances coverage and maneuverability, making it an ideal upgrade for property owners, landscapers, and agricultural professionals who spend long hours behind the wheel.
Constructed from premium fiberglass composite with a high-gloss gel-coat finish, the N-Series offers superior durability, structural design elements improve rigidity and coverage, while integrated mounting design allows secure installation across varied ROPS configurations. The result is a canopy that performs reliably across demanding environments — from mowing acreage to material handling and daily property maintenance.
Beyond protection, the N-Series enhances the overall operating experience. Its optimized shape improves shade positioning throughout the day, reducing fatigue and improving comfort during extended operation. Designed to remain installed during transport and compatible with popular accessories, the N-Series becomes a seamless extension of your tractor — delivering comfort, durability, and professional-grade performance in every application.
N-Series Product Specifications
NX
- 45"W x 46"L
- 20 LBS
- Fits ROPS 30"-40" in width
N1
- 46"W x 58"L
- 25 LBS
- Fits ROPS 30"-40" in width
N2
- 48"W x 66"L
- 30 LBS
- Fits ROPS 35"-48" in width
Construction Materials
- Marine-grade gel coat exterior finish
- Premium Fiberglass construction
- Blacked-out interior underside
Bracket & Hardware
- Heavy-duty steel
- Automotive black Powder-coat
- Heavy duty Powder-coated U-Bolts
- Rubber isolation pads
- Amber & Red Reflector sets
- Nuts, Bolts and Washers.
Install Instructions:
📄 Download Detailed Installation PDF
Tools Recommended
Measuring Tape
Power Drill
3/8" drill bit
Socket and wrench set
Level (Recommended)
1. Prepare mounting components
Identify the mounting plates, support tubes, U-bolts, and hardware included in the kit. Position mounting plates against the ROPS uprights with orientation holes facing forward to allow later adjustment.
2. Determine ROPS spacing
Measure the outside width of the ROPS to confirm tube placement. Depending on spacing, support tubes may mount inside or outside the plates to achieve proper canopy width and centering.
3. Attach bracket assembly
Secure the mounting plates and tubes to the ROPS using the provided U-bolts and flange nuts. Leave all fasteners slightly loose to allow alignment adjustments during leveling.
4. Align and level support structure
Adjust the bracket assembly so the cross tubes sit level side-to-side and parallel with the tractor frame. Proper alignment ensures consistent canopy positioning and load distribution.
5. Position canopy
Place the N-Series canopy onto the support tubes with the rear orientation facing the back of the tractor. Visually confirm that the canopy is centered and level when viewed from the front and sides.
6. Mark and drill mounting holes
Using tube holes as guides, mark mounting locations and drill through the canopy at each corner. Allow the drill to cut gradually through fiberglass to avoid surface damage.
7. Install isolation hardware
Insert mounting bolts through washers, rubber isolator pads, and canopy surfaces before securing with lock nuts. The rubber interface allows slight movement that helps reduce vibration transfer.
8. Final alignment and tightening
Recheck canopy alignment and complete installation by tightening bracket hardware followed by canopy fasteners. Bolts should be snug while allowing isolator pads to remain slightly compressed rather than rigidly clamped.
Post-Installation Check:
- Confirm canopy clearance from controls and seat movement
- Verify all hardware is secure
- Ensure unobstructed operator visibility
Shipping / Freight Information
All Tractor Sunshade orders are prepared and shipped from our distribution facilities once payment and order details have been verified. Most orders are processed within 1–3 business days, excluding weekends and holidays. During peak seasons or promotional periods, processing times may be extended slightly.
Customers will receive an order confirmation email after purchase and a shipment notification once the order leaves our facility.
Shipping Methods & Transit Times
Tractor Sunshade products ship using parcel carriers or freight services depending on product size, weight, and destination.
Common delivery methods include:
- Ground parcel carriers for accessories and smaller items
- LTL freight carriers for canopy systems and larger components
Estimated transit time after shipment is typically 3–7 business days for customers located within the contiguous United States. Delivery timeframes are estimates only and may vary due to carrier scheduling, weather conditions, or regional service limitations.
Shipping charges, if applicable, will be calculated and displayed during checkout.
Shipping Coverage
We currently ship to addresses within the United States. Shipping to Alaska, Hawaii, and other non-contiguous locations may require additional charges and extended delivery times. Customers requiring shipment to these areas should contact our team prior to placing an order.
International shipping availability may vary by destination. Duties, taxes, brokerage fees, and import requirements are the responsibility of the customer.
Freight Deliveries
Orders shipped via freight carrier may require a delivery appointment. In these cases, the carrier will typically contact the recipient directly to coordinate delivery timing.
Customers must ensure accurate contact information is provided at checkout to avoid delays.
Freight deliveries are typically made curbside unless otherwise arranged.
Delivery Inspection & Damage Reporting
Customers are responsible for inspecting all shipments at the time of delivery whenever possible.
If the shipping box, crate, or packaging appears heavily damaged, crushed, torn, punctured, or mishandled, please inspect the product before signing for the delivery if the carrier allows it.
If the product is visibly damaged, or if the packaging damage is severe and you are unable to inspect the product before the driver leaves, we recommend refusing the shipment.
Potential responses If visible damage or suspected damage is present.
- Photograph the shipment before accepting it
- Note the damage or suspected damage with the carrier
- Refuse the shipment if the product appears damaged or cannot be inspected
- Contact Tractor Sunshade as soon as possible
These steps help us document the condition of the shipment and provide the necessary evidence when filing a damage claim with the carrier.
If concealed damage is discovered after delivery, please contact Tractor Sunshade within 48 hours of receipt and provide photos of the packaging and product.
Failure to report shipping damage promptly may limit claim eligibility.
Tracking Information
Shipment tracking details will be provided via email once an order ships.
- Parcel shipments can be tracked using the carrier reference number
- Freight shipments can be tracked using the carrier reference number
For assistance locating tracking information, customers may contact our support team.
Order Changes & Address Accuracy
Customers are responsible for providing accurate shipping addresses at checkout. Tractor Sunshade is not responsible for delays or additional charges resulting from incorrect or incomplete address information.
Requests to modify shipping details after an order has been processed may not be possible.
Pickup Availability
Local pickup availability may vary based on product and location. Customers interested in pickup options should contact Tractor Sunshade prior to ordering to confirm eligibility and scheduling. We are located at:
6010 N 53rd Dr. Glendale, AZ 85301
Contact Us
For shipping questions, delivery concerns, or assistance with an order, please contact Tractor Sunshade customer support:
Email: Sales@tractorsunshade.com
Website: https://tractorsunshade.com
Phone: 623-934-9340
We are committed to ensuring your order arrives safely and in a timely manner.
Why the N-Series is the best fit.
The N-Series canopy is built for a clean fit and everyday usability—delivering the right balance of coverage, versatility, and sleek design. From zero-turn mowers to utility tractors, it integrates easily across a wide range of ROPS setups while providing reliable protection from sun and weather.
Fitment

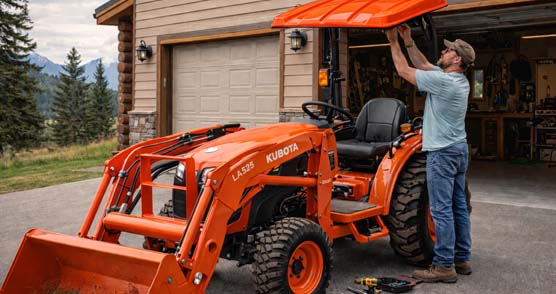

Versatile Fitment
Designed to accommodate Utility tractors to Zero-turn mowers, delivering flexible installation across varying ROPS widths.
Stength

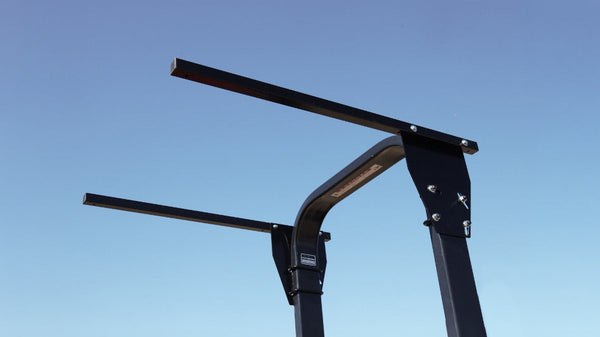

Heavy-Duty Brackets
Heavy-duty steel brackets with a durable powder-coated finish keep your canopy solid and stable—no flex, no wobble, just a firm, secure mount that holds up in real working conditions.
Construction

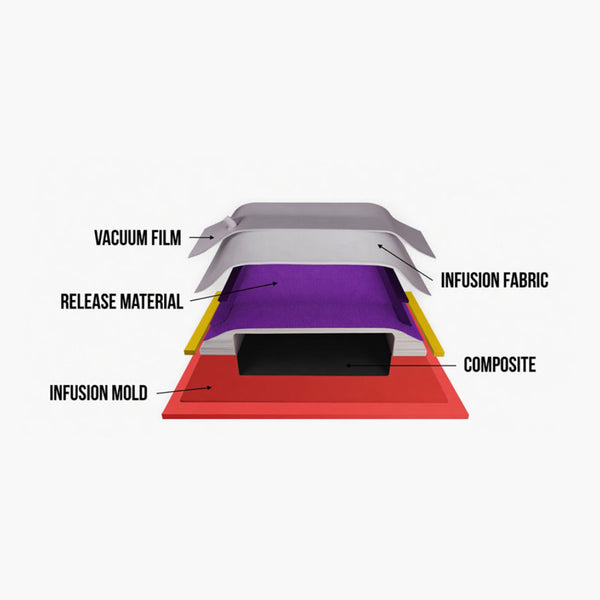

Lightweight Composite Strength
Fiberglass construction delivers durable protection with reduced noise, heat transfer, and vibration compared to traditional plastic or metal canopies.
Accessories
Upgrade your canopy with purpose-built accessories that add real functionality. Improve comfort with airflow, extend your coverage with a visor, add visibility with a light bar, and fine-tune your canopy position with a sliding bracket system.
↔
R Series Canopy
Metal Canopy Competitor
N-Series canopies
N-Series Canopy Size Comparison
Compare overall canopy dimensions, weight, and recommended ROPS width.
N1
- Size
- 46" W 58" L
- Weight
- 25 lbs
- Fits ROPS
- 30"–40" wide
N2
- Size
- 48" W 66" L
- Weight
- 30 lbs
- Fits ROPS
- 35"–48" wide
At a glance
| Specification | NX | N1 | N2 |
|---|---|---|---|
| Width x length | 45" x 46" | 46" x 58" | 48" x 66" |
| Weight | 20 lbs | 25 lbs | 30 lbs |
| Fits ROPS | 30"–40" wide | 30"–40" wide | 35"–48" wide |
At a glance
NX
- Size
- 45" x 46"
- Weight
- 20 lbs
- ROPS
- 30"–40"
N1
- Size
- 46" x 58"
- Weight
- 25 lbs
- ROPS
- 30"–40"
N2
- Size
- 48" x 66"
- Weight
- 30 lbs
- ROPS
- 35"–48"
Use this chart as a size comparison. Confirm your tractor model, ROPS width, and mounting requirements in the application guide before ordering.
