RX1
- Size
- 44" W × 47" L
- Weight
- 22 lbs
- Fits ROPS
- Up to 40" wide
R-Series Product Description
Built for long days and demanding work, the R-Series is our flagship canopy—engineered to deliver maximum coverage, structural strength, and long-term reliability in real-world conditions.
The defining feature of the R-Series is its deep sidewall geometry. Unlike flat or shallow canopy designs, the extended profile wraps coverage down and around the operator, blocking sunlight from more angles throughout the day. The result is a noticeably larger shade footprint that keeps operators cooler, more comfortable, and more productive in open environments.
The canopy’s sculpted form also works with the elements. Its surface is shaped to guide water flow toward the rear of the machine—directing rain behind the operator instead of into the seat area. It’s a subtle design detail that makes a real difference when conditions aren’t ideal.
Fitment is intentionally versatile. With multiple mounting positions and compatibility across a wide range of ROPS configurations, the R-Series adapts easily from zero-turn mowers to larger compact and utility tractors. The design allows the canopy to sit closer to the operator for improved coverage without adding unnecessary bulk.
Each canopy is produced in Glendale, Arizona using a multi-step composite layup process built for strength and longevity. A marine-grade, UV-resistant gel coat is applied first for long-term color stability and surface protection. The structure is then reinforced through a combination of chopped and hand-laid fiberglass with a premium resin system, creating a rigid, durable shell that resists flex, fatigue, and environmental wear.
The result is a canopy that performs as good as it looks—quiet during operation, stable at transport speeds, and built to handle years of use in harsh conditions.
Available in four sizes, the R-Series offers one of the largest effective coverage footprints in its class while maintaining a clean, integrated appearance across a wide range of equipment.
R-Series Specifications
RX1
- 44"W x 47"L
- 23 LBS
- Fits ROPS Up to 40" wide
RX2
- 44"W x 55"L
- 25 LBS
- Fits ROPS Up to 40" wide
R1
- 46"W x 59"L
- 27 LBS
- Fits ROPS Up to 42" wide
R2
- 54" W × 66"L
- 33 LBS
- Fits ROPS Up to 50" wide
Construction Materials
- Marine-grade gel coat exterior finish
- Premium Fiberglass construction
- Blacked-out interior underside
Bracket & Hardware
- Heavy-duty steel
- Automotive black Powder-coat
- Heavy duty Powder-coated U-Bolts
- Rubber isolation pads
- Amber & Red Reflector sets
- Nuts, Bolts and Washers.
Install Instructions
Tools Recommended
Measuring Tape
Power Drill
3/8" drill bit
Socket and wrench set
Level (Recommended)
1. Prepare mounting components
Identify the mounting plates, support tubes, U-bolts, and hardware included in the kit. Position mounting plates against the ROPS uprights with orientation holes facing forward to allow later adjustment.
2. Determine ROPS spacing
Measure the outside width of the ROPS to confirm tube placement. Depending on spacing, support tubes may mount inside or outside the plates to achieve proper canopy width and centering.
3. Attach bracket assembly
Secure the mounting plates and tubes to the ROPS using the provided U-bolts and flange nuts. Leave all fasteners slightly loose to allow alignment adjustments during leveling.
4. Align and level support structure
Adjust the bracket assembly so the cross tubes sit level side-to-side and parallel with the tractor frame. Proper alignment ensures consistent canopy positioning and load distribution.
5. Position canopy
Place the N-Series canopy onto the support tubes with the rear orientation facing the back of the tractor. Visually confirm that the canopy is centered and level when viewed from the front and sides.
6. Mark and drill mounting holes
Using tube holes as guides, mark mounting locations and drill through the canopy at each corner. Allow the drill to cut gradually through fiberglass to avoid surface damage.
7. Install isolation hardware
Insert mounting bolts through washers, rubber isolator pads, and canopy surfaces before securing with lock nuts. The rubber interface allows slight movement that helps reduce vibration transfer.
8. Final alignment and tightening
Recheck canopy alignment and complete installation by tightening bracket hardware followed by canopy fasteners. Bolts should be snug while allowing isolator pads to remain slightly compressed rather than rigidly clamped.
Post-Installation Check:
- Confirm canopy clearance from controls and seat movement
- Verify all hardware is secure
- Ensure unobstructed operator visibility
Shipping / Freight Information
Shipping & Returns Policy
All Tractor Sunshade orders are prepared and shipped from our manufacturing facility in Glendale Arizona. By placing an order, you agree to the shipping and return terms outlined below.
Order Processing
Most in-stock items are processed within 1–3 business days, excluding weekends and holidays.
Orders generally ship within 3–7 business days.
During peak seasons, promotional periods, or periods of high order volume, processing times may be extended slightly.
Customers will receive an order confirmation email after purchase and a shipment notification once the order leaves our facility.
Shipping Methods & Transit Times
Tractor Sunshade products ship using parcel carriers or freight services depending on product size, weight, and destination.
Common delivery methods include:
- Ground parcel carriers for accessories and smaller items
- LTL freight carriers for canopies and large orders.
We ship using trusted carriers including UPS, Old Dominion Freight Lines, FedEx Freight, TForce Freight, and other qualified LTL freight providers as needed.
Estimated transit time after shipment is typically 3–7 business days for customers located within the contiguous United States. Delivery dates and timeframes are estimates only and are not guaranteed. Carrier scheduling, weather conditions, regional service limitations, and force majeure events may affect delivery timing.
Flat Rate Shipping
Flat Rate Standard Shipping applies to Tractor Sunshade branded product orders shipped within the contiguous United States, also known as the lower 48 states.
Flat Rate Shipping:
- Plastic Canopies: $75 per order
- Fiberglass Canopies: $150 per order
Dealer pricing, negotiated pricing, and promotional orders do not qualify for flat-rate shipping unless approved in writing.
Flat-rate shipping applies to standard delivery conditions only. Additional services or delivery conditions may result in additional freight charges, including but not limited to: Delivery inside a building, unpacking, assembly, or special placement is not included unless specifically agreed to in advance.
Shipping Coverage
We currently ship primarily within the contiguous United States.
Shipping to Alaska, Hawaii, U.S. Territories, and other non-contiguous locations may require custom freight arrangements, additional charges, and extended delivery times. Customers requiring shipment to these areas should contact our team prior to placing an order.
We currently ship internationally to Canada. International shipping availability for other destinations may vary.
International customers are responsible for all duties, taxes, customs fees, brokerage fees, import requirements, and compliance with local import laws. Flat Rate Shipping does not apply to international orders. Additional freight charges may apply.
We reserve the right to refuse any shipment that cannot be safely or legally delivered.
Freight Deliveries
Large canopy kits and oversized items ship via LTL freight.
Flat rate freight deliveries are typically made curbside only unless otherwise arranged. Delivery inside a building, unpacking, assembly, or special placement is not included unless specifically agreed to in advance.
Freight deliveries may require a delivery appointment. In these cases, the carrier will typically contact the recipient directly to coordinate delivery timing.
An adult must be present to sign for freight deliveries. Missed delivery appointments may result in redelivery fees.
Customers must ensure accurate contact information and delivery information are provided at checkout to avoid delays or additional charges.
Delivery Inspection & Damage Reporting
All shipments are insured at no additional cost to the customer.
Customers are responsible for inspecting all shipments at the time of delivery whenever possible.
If the shipping box, crate, or packaging appears heavily damaged, crushed, torn, punctured, or mishandled, please inspect the product before signing for the delivery.
If the product is visibly damaged, or if the packaging damage is severe and you are unable to inspect the product before the driver leaves, we recommend refusing the shipment.
If visible damage or suspected damage is present, please take the following steps:
- Photograph the shipment before accepting it
- Note the damage or suspected damage with the carrier or driver
- Refuse the shipment if the product appears damaged or cannot be inspected
- Contact Tractor Sunshade as soon as possible
These steps help us document the condition of the shipment and provide the necessary evidence when filing a damage claim with the carrier.
If concealed damage is discovered after delivery, please contact Tractor Sunshade within 48 hours of receipt, and no later than 5 calendar days after delivery. Please provide clear photos of the packaging and product and retain the original packaging.
Failure to inspect or report shipping damage promptly may limit or void freight claim eligibility.
Tracking Information
Shipment tracking details will be provided via email once an order ships.
Tracking information may include:
- Carrier name
- Tracking number
- PRO number for freight shipments
- Estimated delivery window, when available
Parcel shipments can be tracked directly online using the carrier tracking number.
Freight shipments must be tracked through the carrier’s website using the provided PRO/Tracking number.
For assistance locating tracking information, customers may contact our support team.
Order Changes & Address Accuracy
Customers are responsible for providing accurate shipping addresses, contact information, and delivery details at checkout.
Tractor Sunshade is not responsible for delays, redelivery fees, or additional charges resulting from incorrect or incomplete address information.
Requests to modify shipping details after an order has been processed may not be possible.
Pickup Availability
Local pickup availability may vary based on product and inventory availability.
Pickup is available Monday through Friday from 8:00 AM to 4:00 PM by prior arrangement.
Customers interested in pickup options should contact Tractor Sunshade before ordering to confirm eligibility, inventory availability, and scheduling.
Customers will be contacted when pickup orders are ready.
Special pricing or pickup discounts may apply for pickup orders arranged directly with our team. Pickup discounts must be arranged in advance and are not automatically applied online.
Our pickup location is:
Tractor Sunshade
6010 N 53rd Dr.
Glendale, AZ 85301
Returns
Return Eligibility
Returns must be requested within 15 days of delivery.
To qualify for return, items must:
- Be new and unused
- Be in original packaging
- Be in resellable condition
- Include all hardware and components
Discontinued items and custom products are non-returnable.
Items damaged by misuse, improper installation, modification, neglect, or customer handling are not eligible for return.
Return Process
To initiate a return, please contact Tractor Sunshade customer support:
Email: Sales@tractorsunshade.com
Phone: 623-934-9340
Customers must obtain a Return Merchandise Authorization, also known as an RMA, before shipping any product back.
Unauthorized returns will not be accepted.
Return Shipping & Fees
Customers are responsible for all return freight charges.
Original outbound freight charges are non-refundable.
A 15% restocking fee applies to all approved returns.
We strongly recommend using a trackable freight method for returned items. Tractor Sunshade is not responsible for lost return shipments.
Return shipments can be arranged by Tractor Sunshade if requested.
Refunds
Once your return is received and inspected, approved refunds will be processed to the original payment method.
Refund processing takes approximately 7 business days after the returned item has been received and inspected.
Financial institutions may require 1–2 billing cycles for the refund to appear on your account.
Customers will receive email confirmation once the refund has been processed.
Contact Us
For shipping questions, delivery concerns, return requests, or assistance with an order, please contact Tractor Sunshade customer support:
Email: Sales@tractorsunshade.com
Website: https://tractorsunshade.com
Phone: 623-934-9340
We are committed to ensuring your order arrives safely and in a timely manner.
R-Series canopies
R-Series Canopy Size Comparison
Compare overall canopy dimensions, weight, and recommended ROPS width.
RX2
- Size
- 44" W × 55" L
- Weight
- 25 lbs
- Fits ROPS
- Up to 40" wide
R1
- Size
- 46" W × 59" L
- Weight
- 27 lbs
- Fits ROPS
- Up to 42" wide
R2
- Size
- 54" W × 66" L
- Weight
- 33 lbs
- Fits ROPS
- Up to 50" wide
At a glance
| Specification | RX1 | RX2 | R1 | R2 |
|---|---|---|---|---|
| Width × length | 44" × 47" | 44" × 55" | 46" × 59" | 54" × 66" |
| Weight | 22 lbs | 25 lbs | 27 lbs | 33 lbs |
| Fits ROPS up to | 40" wide | 40" wide | 42" wide | 50" wide |
At a glance
RX1
- Size
- 44" × 47"
- Weight
- 22 lbs
- ROPS
- Up to 40"
RX2
- Size
- 44" × 55"
- Weight
- 25 lbs
- ROPS
- Up to 40"
R1
- Size
- 46" × 59"
- Weight
- 27 lbs
- ROPS
- Up to 42"
R2
- Size
- 54" × 66"
- Weight
- 33 lbs
- ROPS
- Up to 50"
Use this chart as a size comparison. Confirm your tractor model, ROPS width, and mounting requirements in the application guide before ordering.
Why the R-Series is the best fit.
The R-Series canopy is designed for maximum coverage, using deep sidewalls to create a wider, more effective shade area for the operator. Its versatile fit spans everything from zero-turn mowers to utility tractors, making it a reliable solution for consistent protection across a wide range of equipment.
Coverage

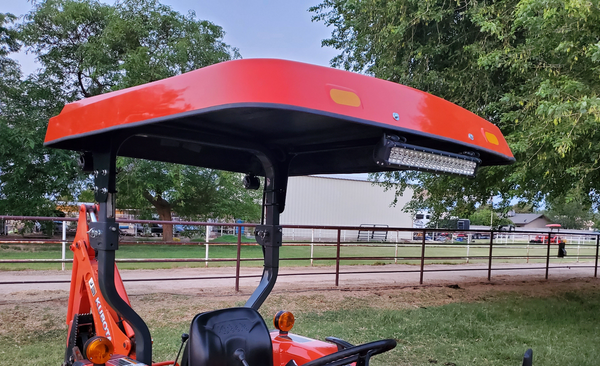

Maximum Shade Coverage
Expanded canopy dimensions and deeper sidewall geometry create a larger shaded workspace that improves comfort during long operating hours.
Strength

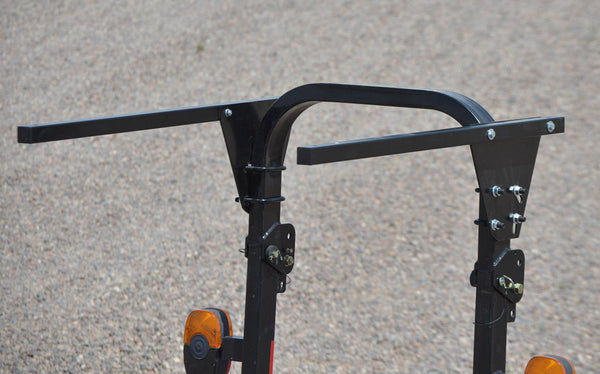

Heavy-Duty Brackets
Heavy-duty steel brackets with a durable powder-coated finish keep your canopy solid and stable—no flex, no wobble, just a firm, secure mount that holds up in real working conditions.
Construction
Lightweight Composite Strength
Fiberglass construction delivers durable protection with reduced noise, heat transfer, and vibration compared to traditional plastic or metal canopies.
Accessories
Tractor Sunshade is dedicated to enhancing operator comfort and functionality, we offer a wide range of tractor sunshade accessories designed to meet the demands of agricultural and utility equipment users. In addition to these core products, Our accessories are engineered for durability and ease of installation.
↔
